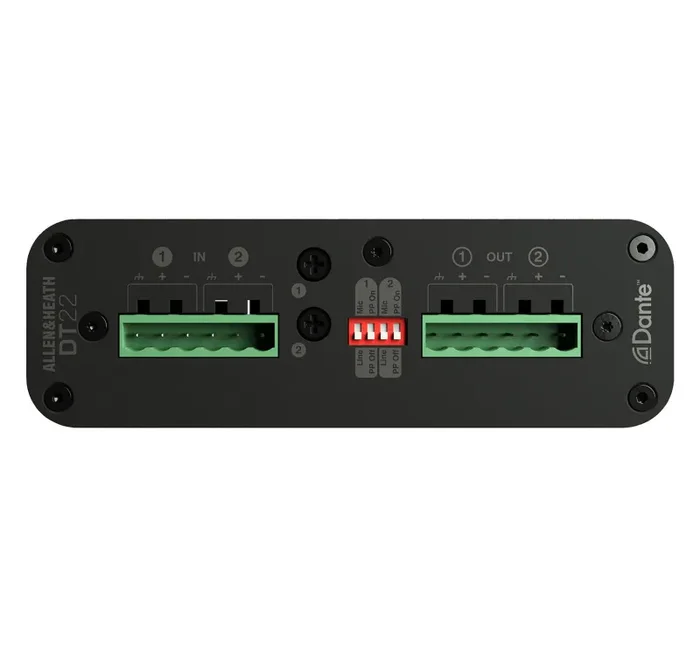

Allen & Heath DT22-M Dante I/O Interface with 2 IN and 2 OUT
The Allen & Heath DT22-M is a Dante I/O Interface with 2 IN and 2 OUT. DT22 is a compact 48kHz/96kHz Dante interface enabling convenient placement of 2 mic/line inputs and 2 line outputs wherever you need to get analogue audio in and out of a Dante network. Equipped with standard Phoenix / euroblock connectors, DT22 is designed for fixed installation and can be easily mounted under a meeting table, for example in a breakout room or huddle space, under a podium for local mic/PC and speaker connection, or rack-mounted to interface with analogue equipment such as an AV switcher.
It can be used with any Dante-equipped Allen & Heath mixer or AHM system, as well as in third party Dante systems. The unit can be PoE powered or powered via a DC 12V supply.
Product Specifications:
Mic/Line Inputs Balanced Phoenix: +48V PP
Analogue Gain: 0 to +55dB
Line Inputs: -20dB PAD
Maximum Input Level: +30dBu (line in)
Input Impedance: >4kΩ (mic), >10kΩ (line)
Output Impedance: <75Ω
Nominal Output: +4dBu = 0dB meter reading
Maximum Output: +22dBu Dante 48kHz/96kHz
