Description

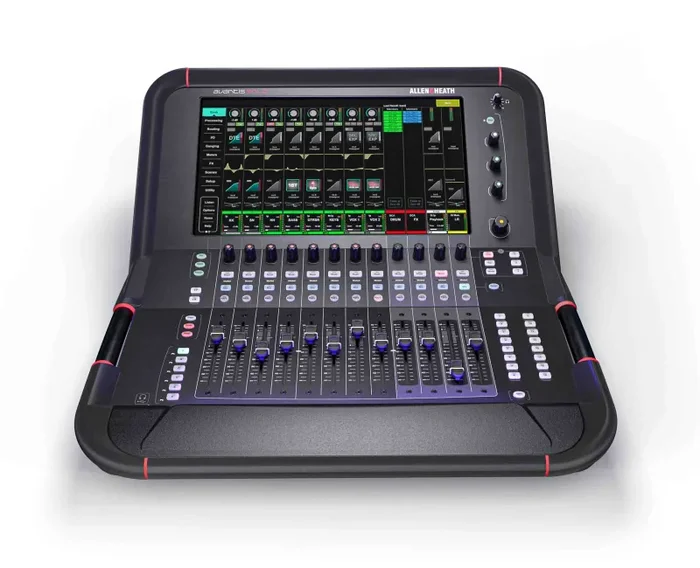

Allen & Heath Avantis Solo 64 Channel and 42 Bus Digital Mixer
The Allen & Heath Avantis Solo is a 64 Channel and 42 Bus Digital Mixer. Avantis Solo distils all the power of Avantis into a potent single screen package. Powered by Allen & Heath’s award winning XCVI FPGA, Avantis Solo boasts 64 channels of input processing with 42 configurable busses; an intelligent SLink port connecting Avantis Solo with the Everything I/O range of remote expanders; studio-grade hardware emulations from Allen & Heath’s flagship dLive system via the optional dPack upgrade; and a super strong yet lightweight full metal chassis.
96kHz XCVI Core
Avantis is the third console range to be powered by the 96kHz XCVI core pioneered by Allen & Heath using next generation FPGA technology, with parallel virtual processing cores delivering 64 full processing inputs and a configurable 42 bus architecture with phase coherency on all mix outputs. XCVI employs variable bit depth for ultimate precision and noise performance, a 96bit mix bus, and offers ultra-low latency at just 0.7ms. XCVI also enables DEEP processing, embedding class-leading processing emulations directly within the input and mix channels.
Easy Expansion with Everything I/O
Avantis Solo is as flexible as it is small, onboard sLink allows for connection to our wide range of audio expanders, whilst two large format I/O card slots support MADI, Dante and Waves cards for a whole host of recording and integration options. For more control you can add our IP remote controllers, connect with MixPad, or Custom Controller, or put the artist in the driving seat with our ME Personal Mixer range.
Product Specifications:
System
Dynamic Range: 109dB
System Signal to Noise: -92dB
Frequency Response: 20Hz – 30kHz (+0/-0.8dB)
Headroom: +18dB
Internal operating Level: 0dBu
dBFS Alignment: +18dBu = 0dBFS (+22dBu at XLR output)
Meter Calibration: 0dB meter = -18dBFS (+4dBu at XLR out)
Meter Peak indication: -3dBFS (+19dBu at XLR out)
Sampling Rate: 96kHz
Operating Temperature Range:
0 deg C to 40 deg C
32 deg F to 104 deg F
Mains Power: 100-240V AC, 50-60Hz, 150W Max
Audio playback:
Mono/stereo.WAV files,
16/24bit, 44.1/48/96kHz
MP3 files
FLAC files
Audio recording: Stereo .WAV files, 24bit 96kHz
Inputs
Mic/Line XLR Inputs: Balanced XLR, +48V phantom power
Mic/Line Preamp: Fully recallable
Input Sensitivity: -60 to +15dBu
Analogue Gain: +5 to +60dB, 1dB steps
Maximum Input Level: +30dBu (PAD in)
Outputs
Analogue XLR Outputs: Balanced, Relay protected
Output Impedance: <75Ω
Nominal Output: +4dBu = 0dB meter reading
Maximum Output Level: +22dBu
Dimensions and Weights
Weight: 38.6lbs
Width x Depth x Height: 21.5″ x 24.7″ x 10.6″
Shipping Weight: 53.6lbs
