Description

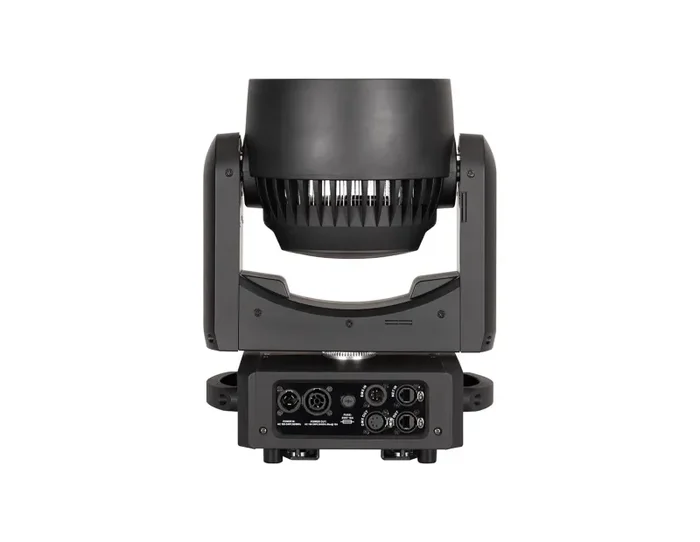

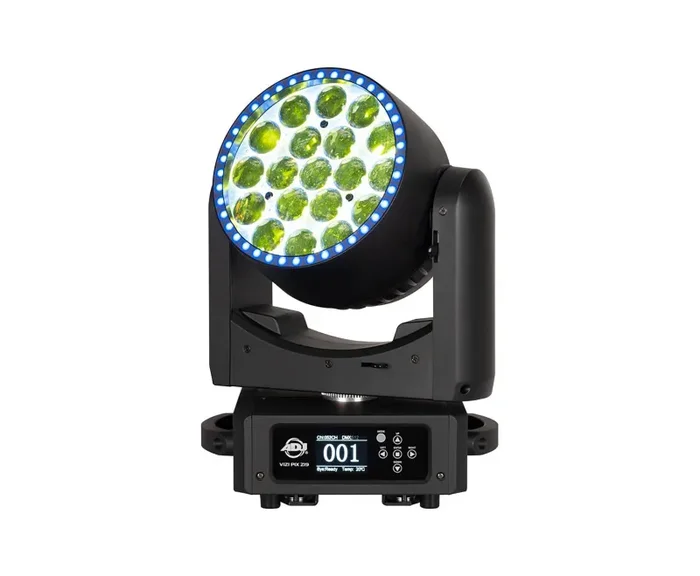

ADJ Vizi Pix Z19 High-Performance 19x 20-Watt LED Moving Head with Aria X2 Controller
The ADJ Vizi Pix Z19 is a high-performance moving head wash fixture engineered to deliver vibrant color effects and captivating visuals for professional stages and live events.
Equipped with nineteen 30-Watt RGBL LEDs, the fixture offers advanced virtual CMY color mixing, a wide motorized zoom range, and smooth electronic dimming, making it ideal for crafting everything from precise beams to expansive washes. Its dynamic design is enhanced by 30 RGB background LEDs and a 40-light RGB LED ring. Its foreground and background LEDs are fully pixel-mappable for complex patterns and dazzling effects. Built-in pixel effect programs and color macros further expand its creative possibilities.
Control options include DMX, Artnet, sACN, RDM, and the Aria X2 wireless system for seamless integration and over-the-air updates. Adjustable dim curves, selectable LED refresh rates, and a white color temperature range from 2,700K to 10,000K ensure flexibility across diverse environments, from live performances to broadcast studios.
With robust pan/tilt locks, durable Seetronic power and data connections, and a lightweight, low-maintenance build, the Vizi Pix Z19 is the ultimate tool for creating striking, professional-grade lighting displays with unmatched precision and versatility.
What’s Included:
180mm Omega Brackets (2x)
1x 2M, IP65-rated locking power cable
Product Specifications:
Optical (Foreground LEDs):
19x 30W RGBL (4-IN-1) LEDs
30,000 Hour Average LED Life
CRI: 86
15,000 Lux (Zoomed In to 7° @ 5 meters)
7° to 42° Beam Angle
9° to 60° Field Angle
Optical (Background LEDs):
30x 0.5W SMD RGB LEDs
50,000 Hour Average LED Life
Optical (Ring LEDs):
40x 0.5W SMD RGB LEDs
50,000 Hour Average LED Life
Colors:
19x RGBL LEDs (Red, Green, Blue and Lime)
70x RGB LEDs (Red, Green and Blue)
Virtual CMY DMX Control Modes
Virtual Foreground and Background Color Wheel Control
Built-In Color Macros
2,700K ~ 10,000K Linear White Color Temperature Control
Color Temperature Presets: 2,700, 3,000, 3,200, 4,000, 4,500, 5,000, 5,600, 6,500, 8,000 and 10,000K
Effects:
19x 30W RGBL (4-IN-1) Foreground LEDs, Fully pixel mappable
30x 0.5W RGB Background LEDs, Fully pixel mappable
40x 0.5W RGB Ring LEDs, three channel control
Variable Strobe & Pulse effects (0.5Hz to 33Hz)
Motorized Zoom (7° to 42°)
Connections:
Seetronic, IP65 locking power In & Thru Connections
Seetronic, IP20 5-pin In & Out DMX Connections
2x IP20, RJ45 network ports
Control:
Aria X2 Wireless Management System
DMX-512
RDM (Remote Device Management)
Artnet
sACN
7 DMX Control Modes: 28 / 37 / M1 52 / M2 52 / 119 / 127 & 197 channels
Built-In Effect Pixel Programs with Speed and Fade Control
With Wired Digital Communication Network
Pan/Tilt:
Pan: 630 or 540 degrees
Tilt: 270 degrees
16-Bit Fine Pan & Tilt
Pan & Tilt Locks
Electrical:
Multi-voltage operation: 100-230V, 50/60Hz
Max power consumption: 730W (6.64Amps) @ 120V. 690W (3.04Amps) @ 230V.
Approvals / Rating:
cETLus Pending
CE Certified
IP20
Weight: 11.9lbs (5.4kg)
Dimensions (LxWxH): 11.97” L x 9.06” W x 16.06”H (304x230x407.9mm)
