Description
ADJ VIZI CMY300, Hybrid Moving Head LED Fixture
The ADJ VIZI CMY300, Hybrid Moving head LED fixture uses a specially designed 300W LED engine that offers massive output for most large venues and event productions. It is a great hybrid utility fixture as it acts as a beam, spot and wash all-in-one with a massive zoom range from 8 to 46-degrees. This allows for designers to get maximum effects from one fixture without having to crowd truss in an installation with multiple fixtures. It also allows for less fixtures to be packed in a truck for production events. What’s more, is it comes in a smaller footprint than most other movers in its class. Plus, the Vizi CMY300 offers a CMY color mixing so designers can custom make colors to create a one-of-a-kind lightshow. The fixture has a built-in antenna with ADJ’s WiFLY EXR wireless DMX that transmits a signal up to 2500 feet / 700M (line of sight).

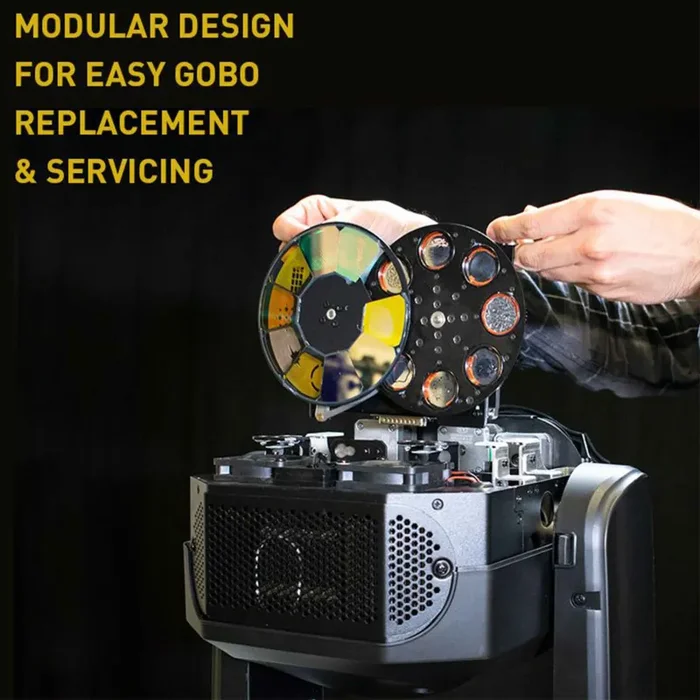

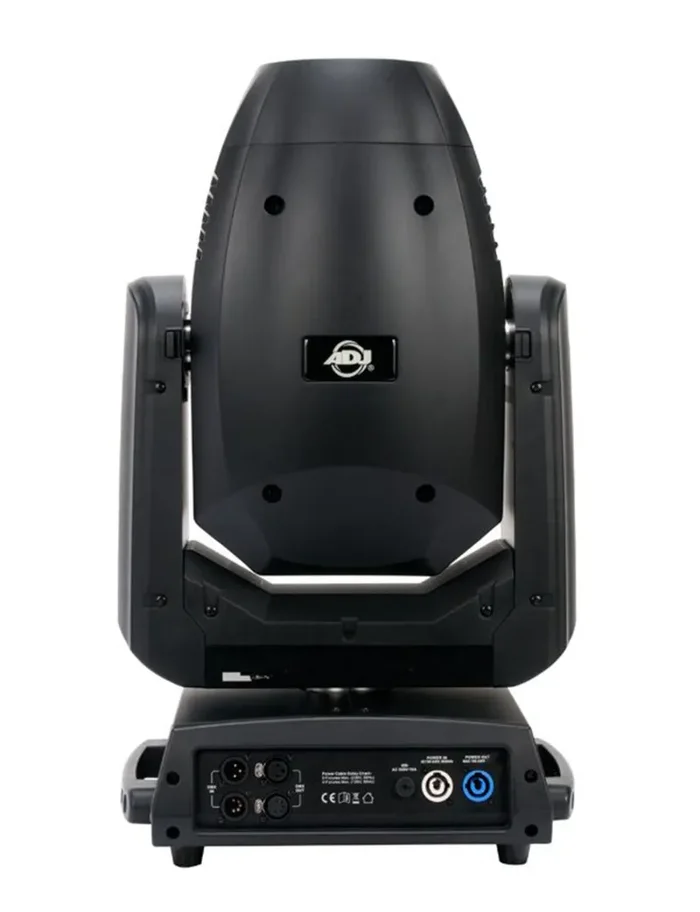

The Vizi CMY300 offers motorized focus, motorized zoom, two rotating prisms (one 6-facet linear & one 3-facet circular), 2 GOBO wheels (1-wheel fixed metal & one wheel rotating/replaceable GOBOs). There is a full color function display on the front panel, with the rear panel offering locking power In/Out connections and 3-pin & 5-pin DMX connections. Under the hood, the Vizi CMY300 offers a modular design making servicing and GOBO replacement easier than ever before.
.iframe-container{
position: relative;
width: 100%;
padding-bottom: 56.25%;
height: 0;
}
.iframe-container iframe{
position: absolute;
top:0;
left: 0;
width: 100%;
height: 100%;
}
.iframe-container{
position: relative;
width: 100%;
padding-bottom: 56.25%;
height: 0;
}
.iframe-container iframe{
position: absolute;
top:0;
left: 0;
width: 100%;
height: 100%;
}
Product Specification:
Fixture Type: Moving Head
Light Source: 1x White LED – 300 W
Expected Lamp Life: 50,000 Hours
Colors: Red, Green, Pink, Orange, Lime, CTO (Color Temperature Orange), Ultraviolet, Blue
Beam Angle: 8 to 46°
Shutter / Strobe: Electronic
Iris: Yes, Mechanical
Focus: Motorized
Zoom Adjustment: Motorized, 8 to 46°
Dimming: Electronic, 0 to 100%
Prism:
3-Facet Circular (Rotating)
6-Facet Linear (Rotating)
Operating Modes: DMX
Macros / Programs: 32x Color Macro
Effects:
Color Scroll
Frost Filter
Gobo Scroll
Gobo Shake
Strobe
Gobos:
8x Fixed Metal Gobo
1x Fixed Spot/Open
6x Removable Spot/Open
Gobo Size:
Outer Diameter: 1.1″ / 26.8 mm
Max Image Size: 0.8″ / 20 mm
Tilt Ranges: 270°
Pan Ranges: 540°
Pan/Tilt Inversion: Yes
Control Protocols: DMX512, WiFly
DMX Channel Modes:
3 Mode(s):
21 / 24 / 26-Channel
Display / Controls: LCD / 4-Button
Remote Control: No
Inputs/Outputs:
1 x USB-A Service Input
1 x XLR 3-Pin DMX Input
1 x XLR 3-Pin DMX Output
1 x XLR 5-Pin DMX Input
1 x XLR 5-Pin DMX Output
Wireless Range: 2296.6′ / 700 m
AC Input Power: 100 to 240 VAC, 50/60 Hz
AC Power Connector:
Input: 1x powerCON
Output: 1x powerCON
Power / Current Consumption:
120 VAC, 60 Hz: 384 W / 3.31 A
220 VAC, 50 Hz: 384 W / 1.8 A
Power Linking:
3 Units at 120 VAC
7 Units at 230 VAC
Environmental Protection: No
Mounting: Omega Bracket
Included Accessories: 1x Power Cable
Duty Cycle: No
Exterior Color: Black
Certifications: ETL
Product Weight: 51 lb. / 23.1 kg
Product Dimensions: 24.3 x 14.9 x 12.8″ / 61.7 x 37.8 x 32.5 cm
Shipping Weight: 65 lb.
Shipping Dimensions (LxWxH): 25.5 x 21 x 19″
