Description

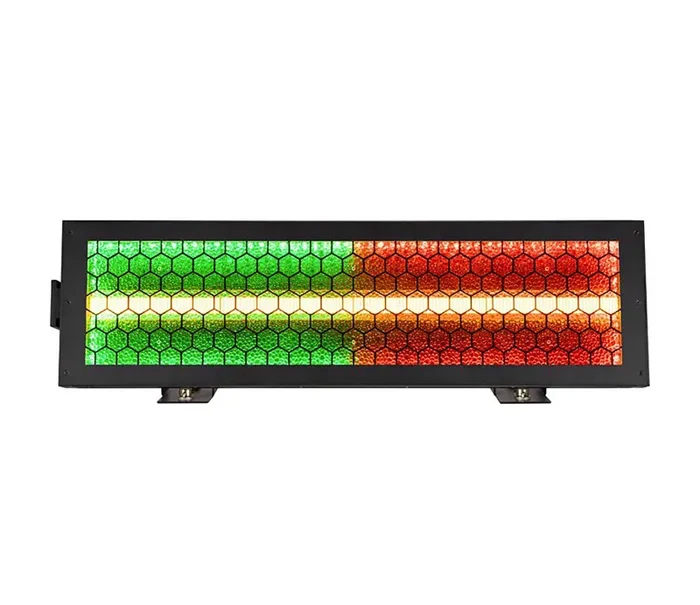

ADJ Vintage Bar Retro Amber Blinder Effect with 20 RGB+UV LEDs and Vibrant RGB Background LEDs
The ADJ Vintage Bar is a versatile scenic lighting fixture designed to inspire creativity and captivate audiences with its dual-purpose design. It offers four 150W amber COB LEDs (2600K) for a retro blinder effect, combined with vibrant 120 SMD 5050 RGB background LEDs configured into 20-pixel groups. This combination enables brilliant amber wash lighting, stunning multi-color eye candy effects and smooth dimming transitions.
Its wide field angle of 160° ensures exceptional light dispersion, making it ideal for stage productions, events, theatrical applications. The fixture features advanced strobing, retro background effects, and silent operation. Additional highlights include flicker-free performance, a user-friendly OLED display, and support for DMX, RDM, and Art-NET protocols. The Vintage Bar also features the Aria X2 wireless management system for over the air firmware/software updates for streamlined control.
Built for flexibility, the Vintage Bar offers multiple control modes, pixel mapping, and interlocking capability, making it perfect for immersive lighting setups. With robust engineering and creative potential, it combines vintage charm with modern functionality for modern lighting designs.
Product Specifications:
Main Technical Parameters:
Primary Light Source: 4 pcs high-power 150W COB amber LED
CCT: 2000K
Lumens: > 27,000
Lux: 647
CRI: 70
Field Angle: 160°
Background Light Source: 120 pcs SMD 5050 RGB LEDs (0.8W each)
Configured into 20-pixel groups (6 LEDs per group)
Dimmer: 0-100% linear dimming system
Special Effects:
Powerful strobe, 0.5 to 33Hz
Unique retro RGB background effect
Silent operation with low noise
Control Modes:
Primary/Secondary synchronization
Stand-alone mode
DMX512 control mode
5 DMX Channel Modes (5/6/8/14/17/18/88/92/94/101 channels)
DMX, RDM, and Art-NET protocol support
Connections:
IP20 indoor 5-pin DMX Input and Thru
IP20 indoor RJ45 Ethernet
IP65 outdoor power locking Input and Thru
Protection Rating:
IP20 (for indoor use only)
Dimensions (LxWxH): 35.75×11.50×10.12” / 908x292x257mm
Weight: 41.89lbs. (19kg)
Optional Accessories: VFB1 (Floor Base for vertical stand)
