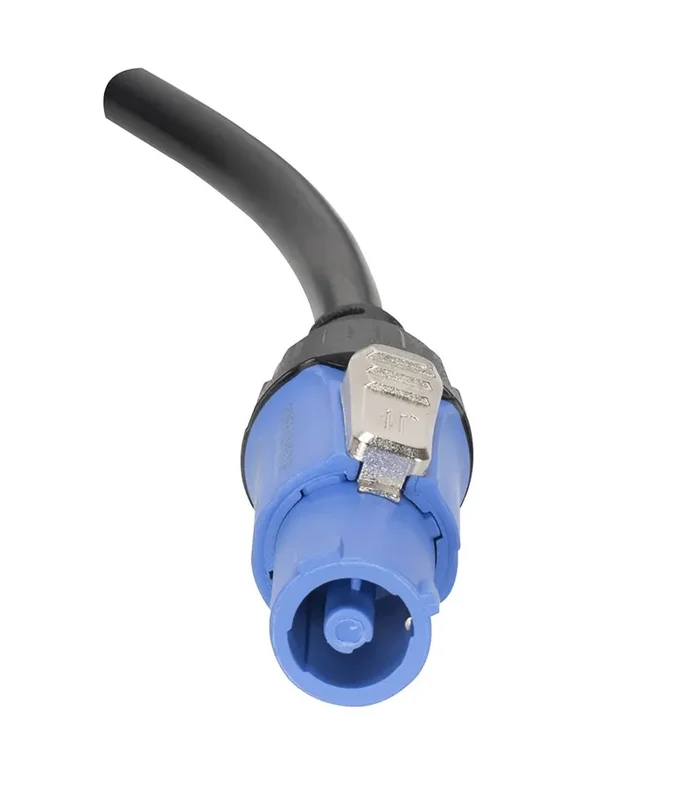

ADJ SIP20MPC, Main Power Cord with IP20 Fixture Side Connector to 120V Male Edison Plug
The ADJ SIP20MPC, Main Power Cord with IP20 Fixture Side Connector to 120V Male Edison Plug is a reliable and durable power connector designed for industrial applications. Featuring a robust PA shell and Cu Alloy contacts with Ag contact surface, it ensures a secure and efficient electrical connection. With an IP20 ingress protection rating and UL94-V0 flame-retardant grade, it offers safety and reliability. This connector is suitable for a wide temperature range from -22F to 176F (-30C to +80C) and complies with the IEC61984 standard for electrical connectors.
Product Specifications:
Shell: PA
Contacts: 2+PE
Contact Surface: Ag
Contacts: Cu Alloy
Standard: IEC61984
Rated Current: 15A
Rated Voltage: 250V AC
Ingress Protection: IP20
Contact Resistance: ≤5mΩ
Flame-retardant Grade: UL94-V0
Dielectric Strength: 4000V DC
Insulation Resistance: >1000MΩ
Service Life: >1000 Mating Cycles
Temperature Range: -22F to 176F (-30C to +80C)
Shipping Weight: 0.5 lbs.
Shipping Dimensions: 3″ x 3″ x 2″
