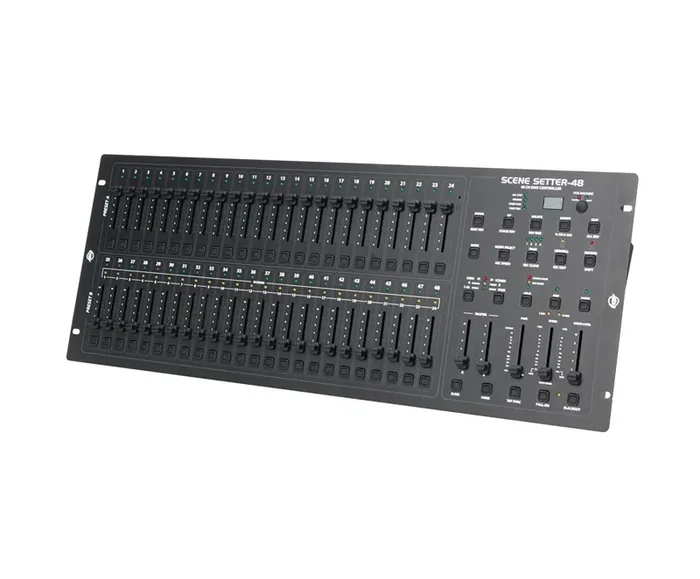

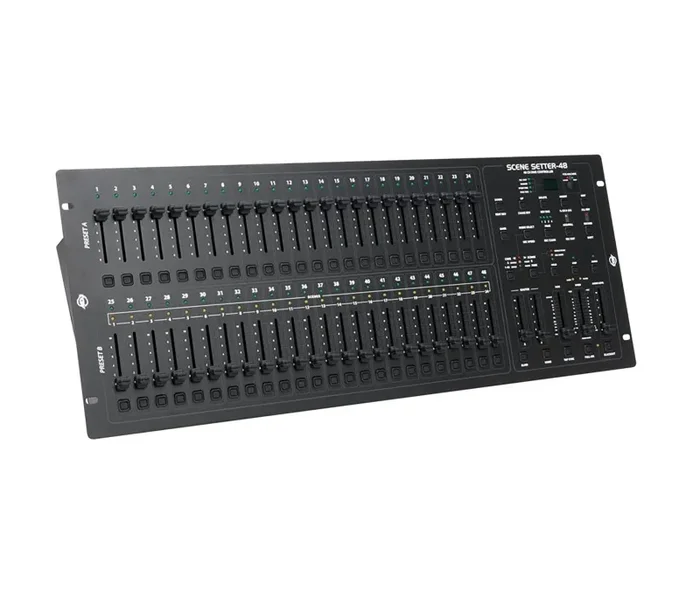

ADJ SCENE-SETTER 48, DMX 48-Channel Dimming Console
Take your shows to the next level with the essential Scene Setter 48 from ADJ. This 48-channel dimming console will give you the power to create the light show of a lifetime. Tying in your audio and visual production, the scene setter incorporates a line level input that will synchronize the music with your par can lights while also allowing for individual adjustment to each of your pars with its 48 adjustable channel faders. With up to 4,300 programmable scenes and 96 programmable chases (all password protected) and 1,000 scenes per chase, you can rest easy that your unique set-up is kept secure while it runs 12 chases simultaneously. Adjust your fixtures in either percentage or DMX value to achieve the dimming intensity that you desire. With its low weight and bright display, you’ll have no trouble moving this controller where it’s needed and getting it set up in no time. Master your entire entertainment system with the Scene Setter DMX Dimming Console, and create a light show your crowd won’t forget.
Product Specifications:
DMX Channels: 48
DMX Connectors: Output: 3-pin XLR
Polarity Reverse: Switch
MIDI: 5-pin standard interface, In/Out/Through
Programs: 4200 scenes and 96 programmable chases
Sound Active: Via built-in microphone or line input
Audio Input: 100 mV, 1 V p-p (line level)
Remote Input: 1/4″ stereo jack for remote control (available separately)
Other Connectors: Connector for fog machine
Power Input: 12 to 20 VDC, 500 mA minimum
Fuse:
F0.5 A, 250 V (internal)
0.19 x 0.78″ / 5 x 20 mm
Dimensions: 27.99 x 10.39 x 3.34″ / 711 x 264 x 85 mm
Product Weight: 15.9 lb. / 7.2 kg (approximately)
Shipping Weight: 17.2 lb.
Shipping Dimensions (LxWxH): 36 x 16.5 x 8.5″
