Description
ADJ RGBW 4C IR, 32-Channels DMX Lighting Controller
The ADJ RGBW 4C IR is a 32-channel RGB, RGBW or RGBA LED controller. It was designed to control any standard 3 or 4 channel group of LED fixtures where channel 1 is Red, channel 2 is Green, channel 3 is Blue and channel 4 is White or Amber. Up to 8 LED fixtures or fixture groups can independently be controlled via four fixture buttons. All LED fixtures or fixture groups must be set to run in DMX mode and be addressed four channels apart for independent control.
The units control panel includes 9 direct access “Static Color/Chase” buttons, which contain pre-programmed color presets and chase programs, 3 user programmable color preset buttons, 4 multi-function faders that control RGBW intensities on the fly, as well as chase program “Speed”, chase program “Fade Time” and “Master Dimmer”. There is also an array of 8 buttons used to select the operation mode, including RGB Fade, Auto Run, Color Macro, Chase, Sound Active, Strobe, Manual RGBW and Blackout modes.
The RGBW4C is one of the simplest and most versatile LED controllers available today. It’s ideal for D.J.’s, nightclubs, lounges, bars and anyone that wants easy control of LED Par’s, Bar’s, Flood’s or Panel’s.
Product Specifications:

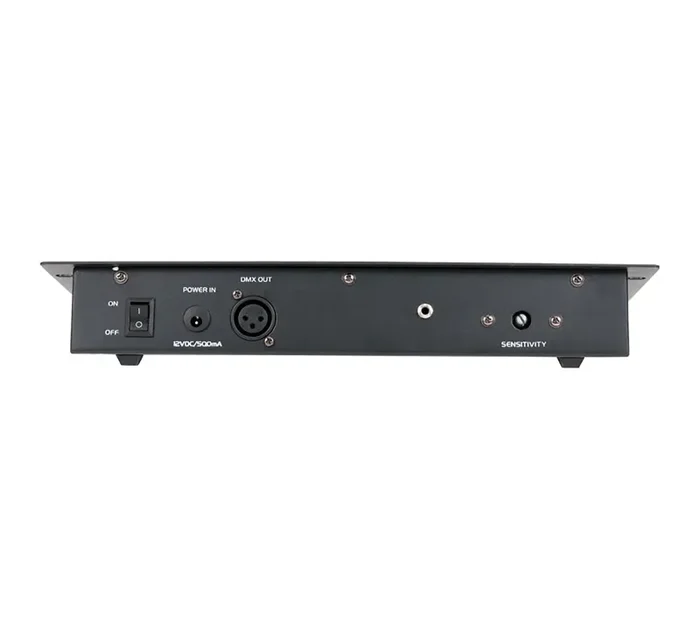

DMX Output Connector: 3-Pin XLR
Power In: 12VDC 500ma UL Approved Power Supply (Included)
Power Consumption: 3.6 Watts
Product Size: 12.9” X 5.5” X 1.9” (327 X 140 X 48mm)
Product Weight: 2.4lbs. (1.1kgs.)
Shipping Weight: 3.335 Lb.
Shipping Dimensions (LxWxH): 18.4 X 7 X 3.5″
