Description

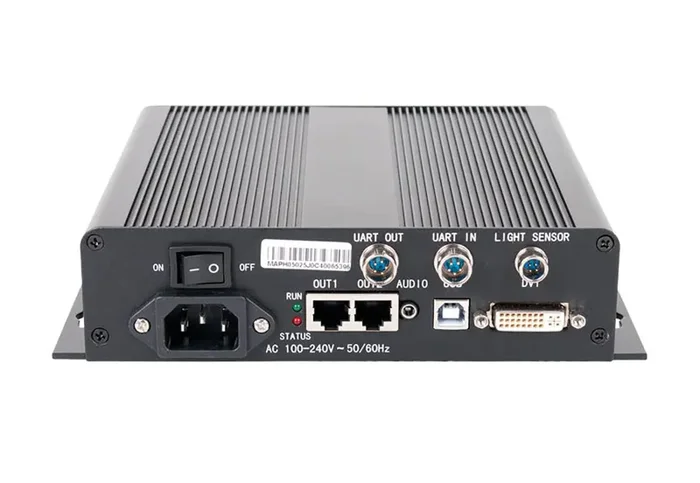

ADJ MCTRL-300, Controller for AV6 LED Video Panel
The ADJ MCTRL-300, Controller for AV6 LED Video Panel features one DVI signal source input and two RJ45 pixel-data outputs. The controller is easily configured via USB and it will drive up to 1.3 million pixels supporting the following resolutions: 1280 x 1024, 1024 x 1200, 1600 x 848, 1920 x 712, 2048 x 668. The MCTRL-300 is an essential accessory for the AV6 video panels.
.iframe-container{
position: relative;
width: 100%;
padding-bottom: 56.25%;
height: 0;
}
.iframe-container iframe{
position: absolute;
top:0;
left: 0;
width: 100%;
height: 100%;
}
Product Specifications:
Control Mode: Synchronous Display with Control PC by DVI
Frame Update Frequency: 50-60Hz
Scan Mode: 1/12 Duty
Refresh Rate: 1200Hz
Support Input: Composite, S-Video, Component, VGA, DVI,
HDMI, HD_SDI
Control Distance: Ethernet Cable <100m or Fiber Optic>120m
Support VGA Mode: 1280 x 1024, 1024 x 1200, 1600 x 848, 1920 x 712, 2048 x 668
Brightness Correction: Pixel, Module, Cabinet
Shipping Weight: 6.4 lbs. (2.9 kg)
Shipping Dimensions: 23.5 x 10.5 x 5.5” (59.7 x 26.7 x 14 cm)
