Description

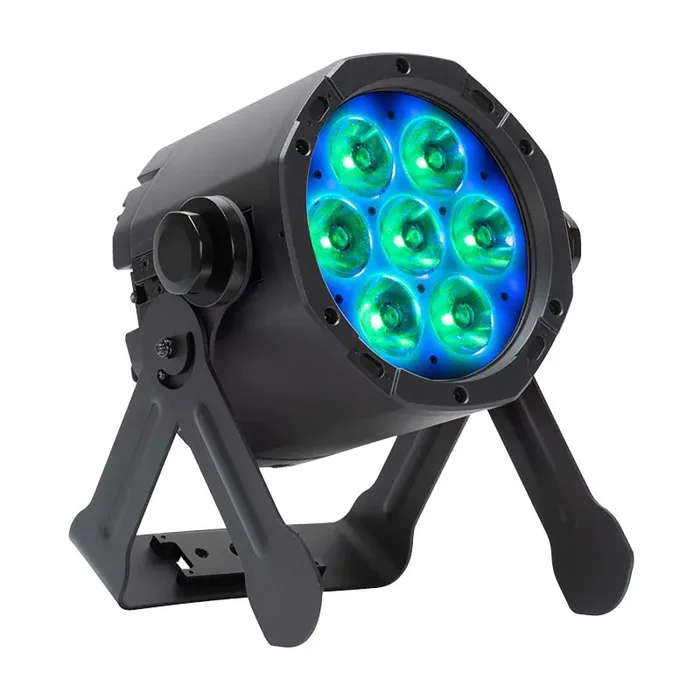

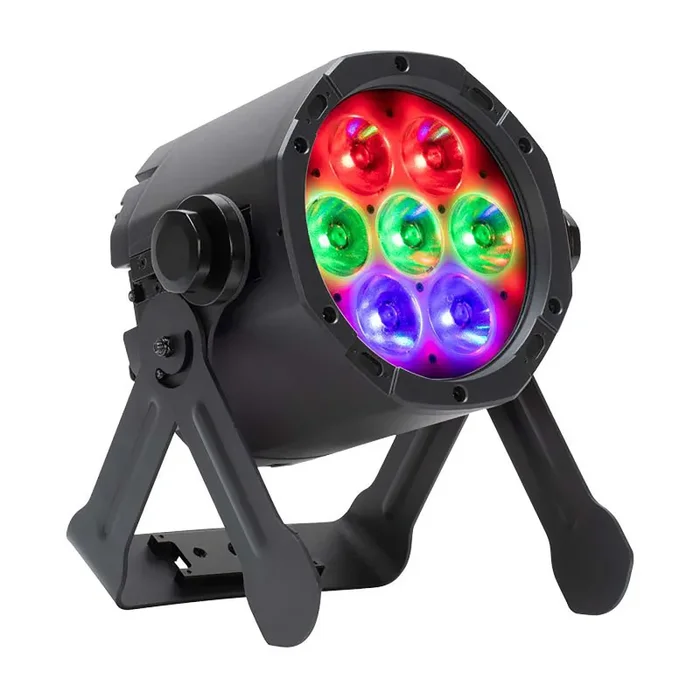

ADJ ElectraPix Par 7, IP65 Outdoor-Rated Battery Powered LED PAR – RGBAL+UV
The ADJ ElectraPix Par 7, IP65 Outdoor-Rated Battery Powered LED PAR – RGBAL+UV is a cutting-edge wireless DMX lighting solution. Packed with advanced features, this fixture boasts seven 20-Watt Hex Color LED (RGBAL+UV), providing unparalleled control and creativity. Powered by either batteries or wall outlets, battery operation can be selected by the user for durations ranging from 5 to 20 hours.
With individual pixel control, built-in foreground and background LED programs, and a variable white color temperature range, the ElectraPix Par 7 ensures dynamic lighting possibilities. Its color-calibrated LEDs, user-selectable dim modes, and electronic strobe/dimming enhance versatility.
Designed for adaptability, the IP65-Rated housing, OLED digital display, L Track system, and adjustable feet make installation and customization a breeze. The fixture’s control options include DMX512, Aria X2 Wireless DMX, Bluetooth, RDM compatibility, and an included UCIR24 wireless remote.
The ElectraPix Par 7 guarantees reliability with certifications such as CE, FCC, and pending cETLus, while its IP65-Rating ensures durability in various environments. Included accessories like the outdoor locking power cable and UCIR24 remote, along with optional add-ons, make this fixture a comprehensive lighting solution for professionals. Elevate your lighting design with the ElectraPix Par 7, where innovation meets performance.
Product Specifications:
Source:
(7) 20W Hex Color RGBAL+UV Foreground LED’s
(29) 0.2W RGB Background LED’s
50,000 Hour Average Life
May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
Optical:
2,300K ~ 9,900K White Color Temperature Range
17° Beam Angle
Physical:
IP65 Housing
OLED Digital display
L Track system for locking accessories / rigging
Gel Frame Holder
Adjustable, hanging / kick stand bracket
Control:
DMX512
Aria X2 Wireless Management / DMX System
Bluetooth
RDM and RDM Net Compatible
IR (Includes UCIR24 wireless remote)
(9) DMX Channel Modes (5, 6, 9, 13, 22, 24, 42, 45 & 54 Channel modes)
On-board Manual Control Mode
Primary / Secondary Mode
Connections:
5pin XLR Outdoor DMX In/Out Sockets (Must be used with STRxxx, 5pin DMX cables to create IP65 seal)
Outdoor Locking Power Sockets
Battery Charging Socket
Dimensions & Weight:
Length: 11.11” (282.1mm) Width: 9.77” (590.3mm) Height: 7.46” (189.5mm)
Weight: 15.4 lbs. (7 kg)
Power:
AC100-240V/50Hz-60Hz Input
60W Power Consumption
Link 15 pieces @120VAC or 28 pieces @ 230VAC
Battery:
Rechargeable Lithium ion
Battery Capacity: 7,000mAh
Battery Voltage: 22.2V
Charge Time: 6 Hours (To Full)
Battery operation can be selected by the user for durations ranging from 5 to 20 hours. 5 Hour duration will operate at Full Output when battery is fully charged
Battery Cycles: 500
Thermal:
Ambient Operational Temperature: -4°F to 113°F (-20°C to 45°C)
Storage Temperature: -22°F to 113°F (-30°C to 45°C)
Certifications & IP Rating:
CE
cETLus (Pending)
FCC
IP65
Included Accessories:
(1) Outdoor Locking Power Cable
(1) Floor / Mounting Bracket
(1) UCIR24 Remote
(1) Gel Frame
(1) 20° Diffusion Filter
Optional Accessories:
LTrack A2 (LTrack Adapter Only)
LTrack CA2 (LTrack Adapter with Narrow Clamp)
ELP12IPBDA (Barn Door and Gel Frame Assembly, Sku: ELP404)
ELPIX7L55: 55° diffusion filter for the ElectraPix Par 7
ELPIX7L40: 40° diffusion filter for the ElectraPix Par 7
ELPIX7L30: 30° diffusion filter for the ElectraPix Par 7
ELPIX7L20: 20° diffusion filter for the ElectraPix Par 7
ELPIX7L30X60: 30×60° linear filter for the ElectraPix Par 7
ELPIX7L15X60: 15×60° linear filter for the ElectraPix Par 7
ELPIX7L10X60: 10×60° linear filter for the ElectraPix Par 7
ELPIX7L10X40: 10×40° linear filter for the ElectraPix Par 7
EPIX P7 IPCB: replacement charging base and power supply
