Description

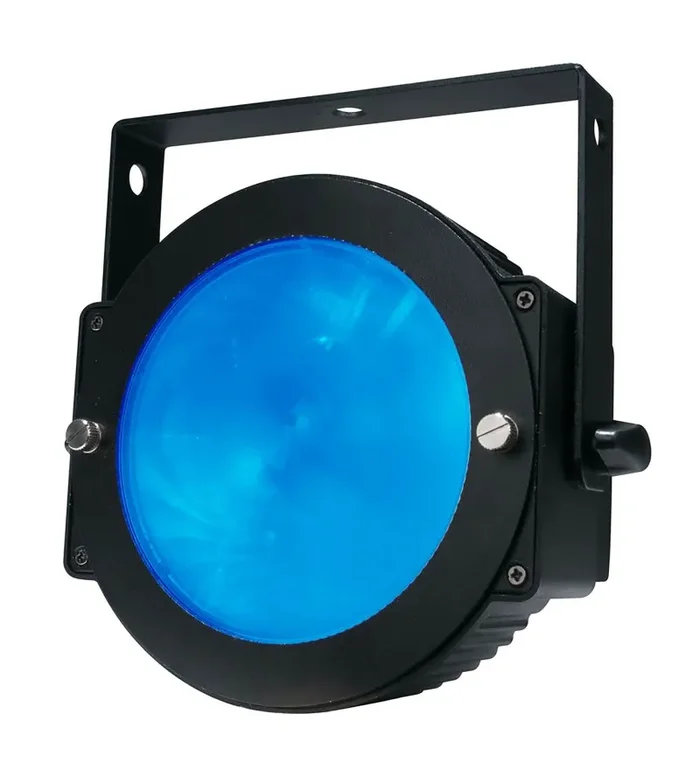

ADJ Dotz Par, LED Lighting Fixture and Wash Light – RGB
The ADJ Dotz Par uses advanced COB (Chip on Board) technology allowing for a powerful LED engine to be placed in a small amount of space. The result is a high output, smooth color mixing LED Par with no RGB shadows. Designed for mobile or permanent wash lighting of stages, clubs, dance floors and churches. The COB LED engine on the Dotz Par is a TRI 36W (3-In-1).
The Dotz Par produces wash of 60-degrees (25-degrees if you put on the supplied lens kit). It has 4 DMX Channel modes for programming flexibility, 32 built-in color macros and 5 selectable Dim Curves. The fixture has many pro features such as: 0-100% electronic dimming, strobe/pulse effect, Flicker Free operation, DMX and power daisy-chaining, and a 4-button LCD DMX display. Dotz Par may run in its stand-alone mode from built-in programs, sound actively, from a DMX controller, or from the ADJ Par RF wireless remote control.
.iframe-container{
position: relative;
width: 100%;
padding-bottom: 56.25%;
height: 0;
}
.iframe-container iframe{
position: absolute;
top:0;
left: 0;
width: 100%;
height: 100%;
}
Product Specifications:
Fixture Type: PAR
Light Source: 1x Color LED (COB) – 36 W
Expected Lamp Life: 50,000 Hours
Colors: Red, Green, Blue
Photometrics:
25°:
90 fc / 970 Lux at 6.6′ / 2 m
25 fc / 266 Lux at 13.1′ / 4 m
60°:
12 fc / 130 Lux at 6.6′ / 2 m
Beam Angle:
60° (with Installed Lens)
25° (with Included Lens)
Zoom Adjustment: No
Dimming: Electronic with 5 Dimmer Modes
Operating Modes:
Automatic, Color Change, Color Dimmer, DMX,
Primary/Secondary, Sound-Active, Static Color
Macros / Programs: 32x Color Macro
Effects:
Pulse (Variable Speed)
Strobe (Variable Speed)
Gobos: No
Refresh Rate: 3.6 kHz
Control Protocols: DMX512
DMX Channel Modes:
4 Mode(s):
3 / 4 / 5 / 9-Channel

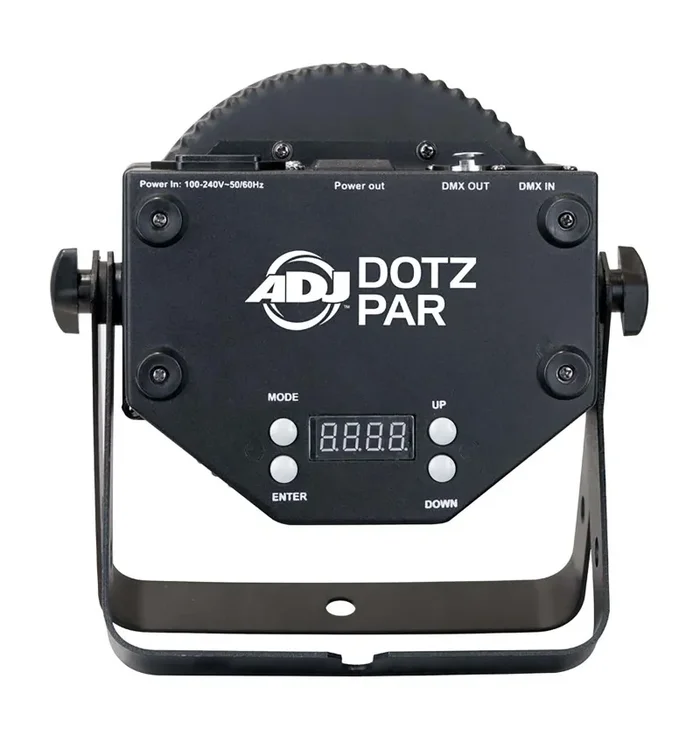

Display / Controls: LED / 4-Button
Remote Control: RF Remote (with Optional Equipment)
Inputs/Outputs:
1 x XLR 3-Pin DMX Input
1 x XLR 3-Pin DMX Output
AC Input Power : 100 to 240 VAC, 50/60 Hz
AC Power Connector:
Input: 1x IEC
Output: 1x IEC
Cord Length: 70.9″ / 1.8 m
Fuse:
120 VAC: 2 A
230 VAC: 1 A
Power / Current Consumption: 36 W
Power Linking:
10 Units at 120 VAC
22 Units at 230 VAC
Environmental Protection: No
Mounting: Single Yoke Only
Duty Cycle: No
Exterior Color: Black
Certifications: ETL
Dimensions:
6.5 x 6.5 x 4.5″ / 16.5 x 16.5 x 11.4 cm (without Bracket)
8.7 x 8.2 x 4.5″ / 22.2 x 20.9 x 11.4 cm (with Bracket)
Weight: 5 lb. / 2.3 kg
Shipping Weight: 5.7 lb.
Shipping Dimensions (LxWxH): 11 x 9.5 x 6.8″
