Description

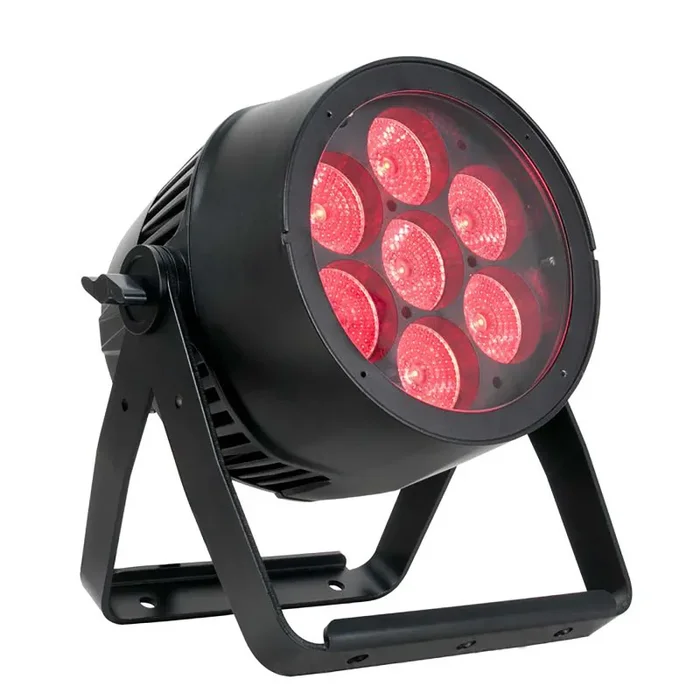

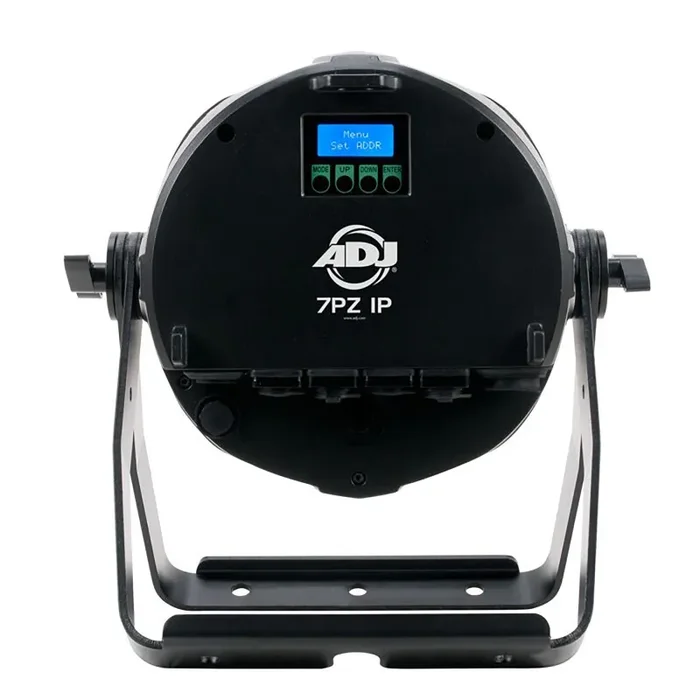

ADJ 7PZ IP, Heavy-Duty LED Par with Motorized Zoom and WiFLY EXR DMX
The ADJ 7PZ IP, Heavy duty, metal IP65 outdoor rated 105W LED Par with motorized zoom and ADJ’s WiFLY EXR wireless DMX built-in features seven 15W quad (4-IN-1 RGBW) LEDs with 64 built-in color macros. There are 5 dimming curves plus smooth 0-100% electronic dimming. With 5 operational modes, 12 DMX channels modes and 4-button menu with function display, the 7PZ IP has a varied of control options. The zoom range is 5 ~ 45-degrees.
A choice of twelve different DMX modes: 4, 5a, 5b, 6, 7a 7b, 8, 9, 10a, 10b, 12 and 13-channel – offer added flexibility. The basic 4 and 5-channel mode are useful in situations where available DMX channels are limited, while the full 13-channel option offers full control over all the fixture’s features including full red, green, blue and white color mixing, master dimmer, strobing and zooming.
Product Specifications:
Optical:
Light Source: 7 x 15-Watt Quad (RGBW) LEDs
LED Life Expectancy: 50,000 Hrs.
Beam Angle: (5 to 45-degrees)
Refresh Rate: 1.8KHz
Connections:
Power Input: IP65 rated connection
Power Pass through: IP65 rated connection
Data: 3 Seetronic IP connection
With Wired Digital Communication Network
Control:
12 DMX Channel Modes (4, 5a, 5b, 6, 7a 7b, 8, 9, 10a, 10b, 12 and 13-channel)
16 Selectable WiFLY Address Channels
Electrical:
Input Voltage: 100-240V 50Hz/60Hz (Auto Sensing)
Power draw 120V 60Hz: 128W
Power draw 220V 50Hz: 128W
Physical:
Dimensions (LxWxH): 10.5” x 13.75” x 15” / 270 x 350 x 380mm
Weight: 25 lbs. / 11 kg.
Metal Black Housing
IP 65
What’s Included:
IP65 connection to Edison Cable (1M)
Manual
