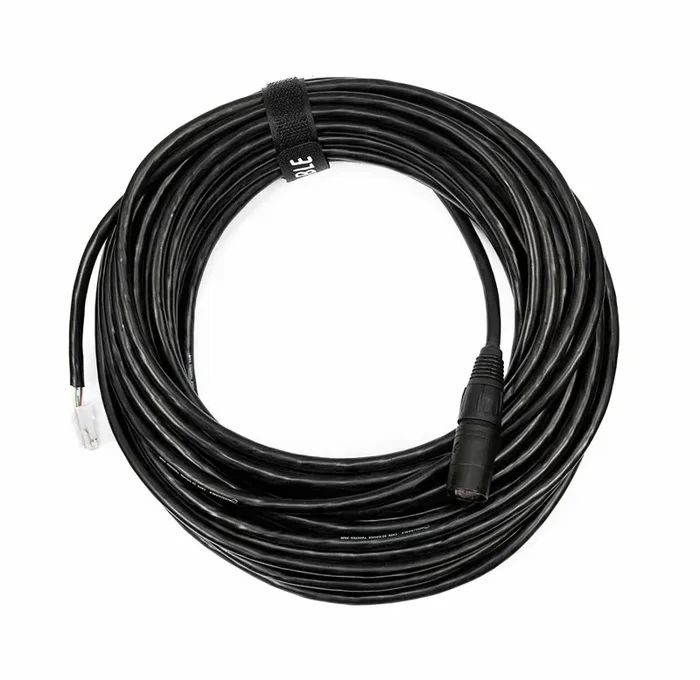

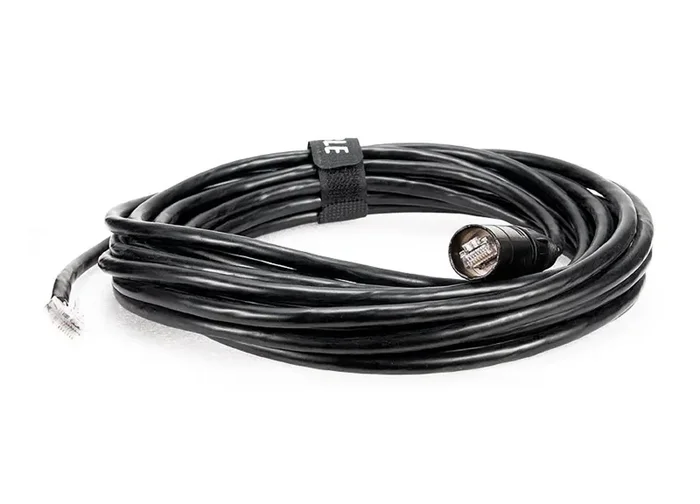

Accu-Cable CAT6PRO, Cable with Raw RJ45 and Locking Neutrik Ethercon Connectors
The Accu-Cable CAT6PRO-VAR, CAT6 Cable with Raw RJ45 and Locking Neutrik Ethercon Connectors is an 8 conductor, twisted pair cable complying to the CAT6, T-568B standard. The CAT6 Pro cable has a plastic separator between the different pairs, which follows the most stringent specifications for crosstalk and noise. Because of this, CAT6 Pro cable supports frequencies up to 250 Mhz. The maximum cable run length according to the standards is limited to 328 feet (100 meters).
Product Specifications:
inner conductor: Bare COPPER 19 x 0.12
Inner conductor section: 0.22mm²
Isolation: HDPE Ø 0.95mm
T-568B, Straight Cable Wiring: Blue (Pin 4), Blue-White (Pin 5), Orange (Pin 2), Orange-White (Pin 1), Green (Pin 6), Green-White (Pin 3), Brown (Pin 8), Brown-White (Pin 7)
Number of conductors: 8
Conductor Twisting: Yes
Outer jacket: Flexible PVC
Outer jacket color: Black
Outer jacket dimensions: Ø 6.5mm
American Wire Gauge: 24 AWG
Available In: 25 Ft, 50 Ft, 100 Ft
