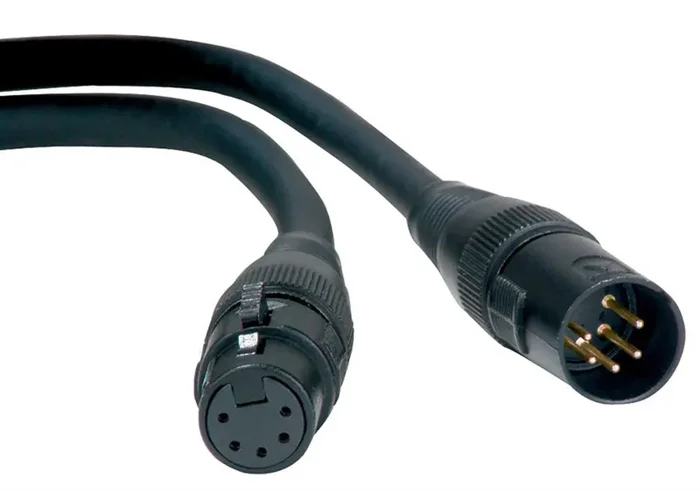

Accu-Cable AC5PDMX10, 5-Pin Male to 5-Pin Female Connection DMX Cable – 10 foot
The Accu-Cable AC5PDMX10, 5-Pin Male to 5-Pin Female Connection DMX Cable – 10 foot is designed for connecting DMX controllers, DMX lights, and other 5-pin DMX devices into a stage lighting or effect system for live performance applications. The cables are constructed of 22 AWG stranded tinned copper conductors insulated by polyethylene within a PVC jacket.
Product Specifications:
Connector 1: XLR 5-Pin Male
Connector 2: XLR 5-Pin Female
Number of Conductors: 4
Conductor Material: Tinned Copper
Shielding: 85% Tinned Copper Braid
Jacket Type: Polyvinyl Chloride (PVC)
Insulation Type: Polyethylene
Outer Diameter: 0.09″ / 2.29 mm
Bend Radius: 3.5″ / 8.9 cm
Maximum Pull Tension: 22 lb / 10 kg
Operating Temperature: -22 to 167°F / -30 to 75°C
Cable Length: 10′ / 3.05 m
Weight: 0.5 lb / 0.2 kg
Wire Gauge: 22 AWG
Conductor Capacitance: 12.5 pF/ft at 1 kHz
Conductor DC Resistance: 24 Ohms/ft (Up to 1000′ / 304.80 m)
Nominal Impedance: 110 Ohms
Attenuation: 0.6 dB @ 1 MHz
Shipping Weight: 1 lbs
Shipping Dimensions (LxWxH): 11.9 x 3.85 x 1.1″
